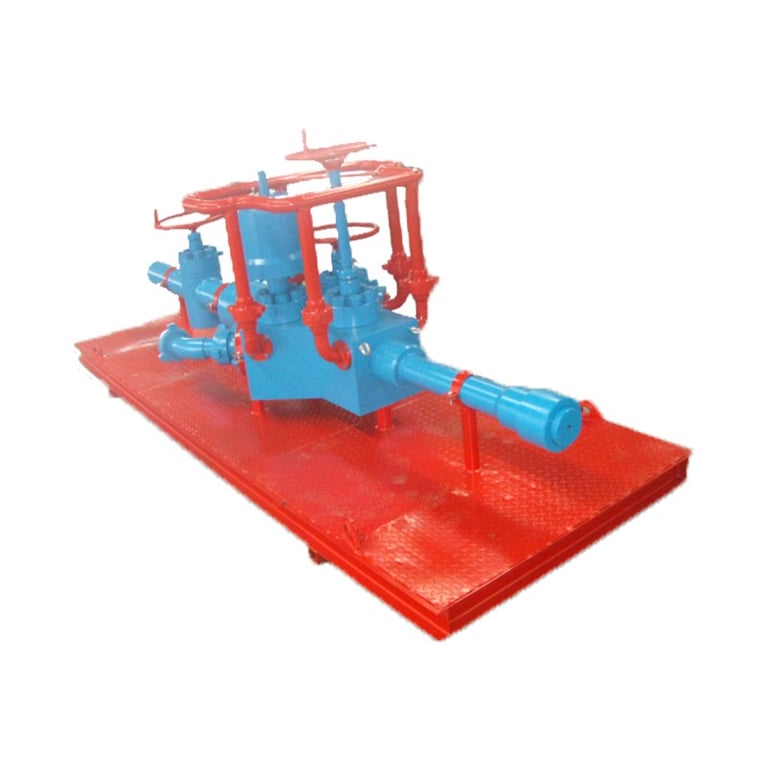

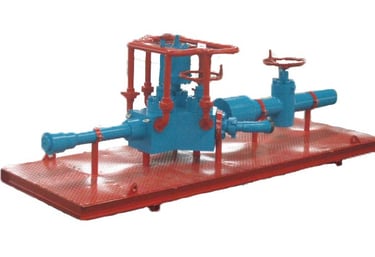

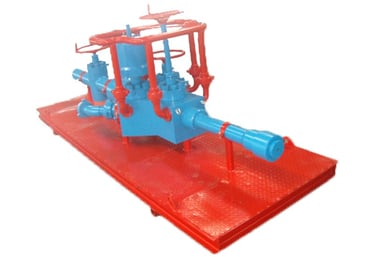

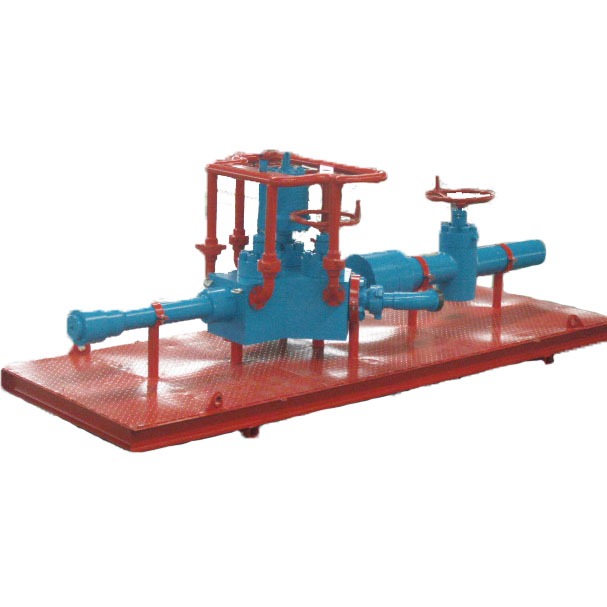

flowhead assembly

Linkbridge Oil is a leading flowhead assembly manufacturer in China, providing high-quality flowhead assemblies that meet API 16C standards. Our flowheads are designed to control surface pressure, manage fluid and gas movement, and facilitate the introduction of wireline during drill stem testing (DST).

Technical Specifications

• Standard: API 16C

• Nominal Size: 1 13/16"~9"

• Rated Pressure: 5000PSI~15000PSI

• Product Specification Level: NACE MR 0175

• Temperature Level: K~U

• Material Level: AA~HH

Key Features

• Easy Assembly and Disassembly: The upper and lower units are coupled with a load-bearing quick union for quick setup.

• Reliable Valve Configuration: Includes a handing sub, upper swab gate valve, remote safety valve, flow line, and kill line outlets.

• Optional Enhancements: Available with a hand pump or hydraulic control unit, wireline cutting mechanism, wireline adapter, and transportation basket.

What is a Flowhead Assembly?

A flowhead assembly, also known as a surface test tree, is an essential piece of equipment in well testing. It typically consists of four gate valves: a master valve, two wing valves, and a swab valve. The outlet wing valve is controlled by a hydraulic actuator, while a lifting subassembly (sub) with a threaded connection (quick union) is located above the swab valve. This quick union connects auxiliary pressure equipment, making the setup versatile and efficient.

Some flowheads feature a protective frame bolted to the main block to shield the valves during handling. Beneath the optional swivel are the master valve assembly and the bottom sub. Elevators (clamps) are attached to the flowhead for raising and lowering the DST string.

Why Choose Our Flowhead Assemblies?

Our flowhead assemblies are engineered for maximum efficiency in high-pressure well testing. They ensure fluid movement with minimal resistance, reducing the risk of blockage. During DST, our equipment supports acid jobs, fracture jobs, stage cementing jobs, and reformatting jobs without the need to lift the string, saving both time and effort.
