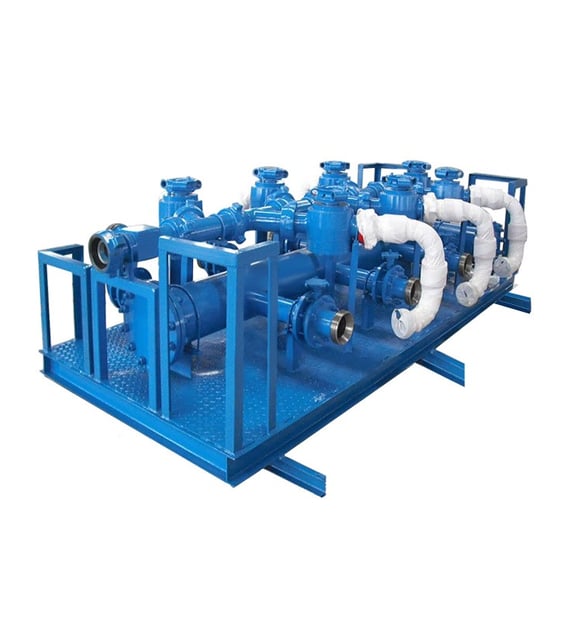

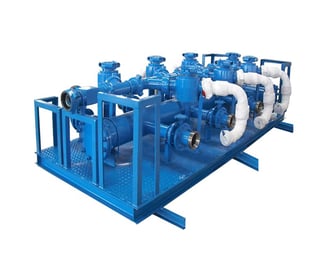

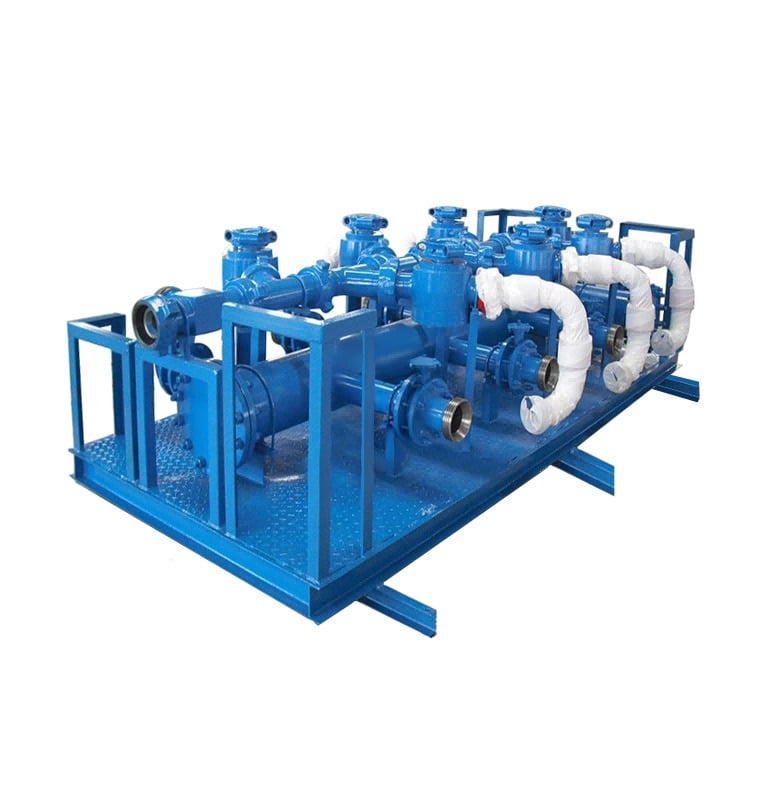

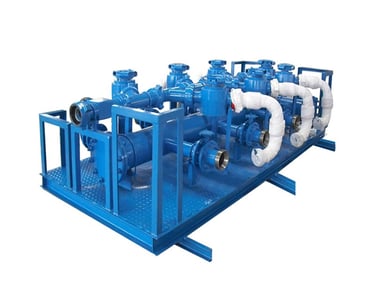

High and Low Pressure Manifold

What is a High and Low Pressure Manifold?

A high and low pressure manifold is a combined fluid control system designed to:

• Connect multiple fracturing equipment simultaneously

• Gather and pump fluids to the wellhead

• Enable fluid discharge and high-pressure fracturing in a streamlined and safe manner

The manifold integrates high- and low-pressure components on a single modular skid, simplifying:

• Installation

• Transportation

• Wellsite layout standardization

Design Advantages:

• One-piece forged body:
  Minimizes flange connections, reducing potential leak points.

• Forged lateral inlets:
  Optimized for smoother flow dynamics and reduced turbulence.

• Inlaid ring grooves:
  Improves seal integrity and resists corrosion/erosion.

• Self-aligned inlet flange with environmental seal:
  Enhances safety and ease of connection.

• Skid-mounted integration:
  Simplifies transport, deployment, and wellsite standardization.

Efficiency and Sustainability Focus:

Our high and low pressure manifold skids are engineered with energy efficiency and sustainability in mind:

• Optimized fluid paths reduce energy waste

• Intelligent control systems enable precise pressure regulation

• Environmentally sealed designs minimize leakage risks

• Supports cost-effective, safe, and eco-conscious fracturing operations
