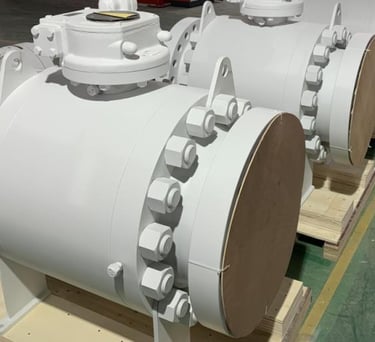

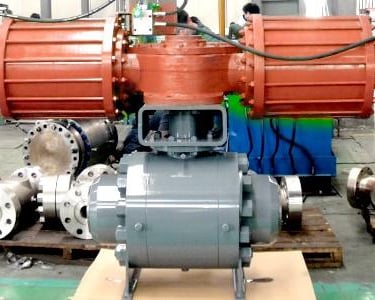

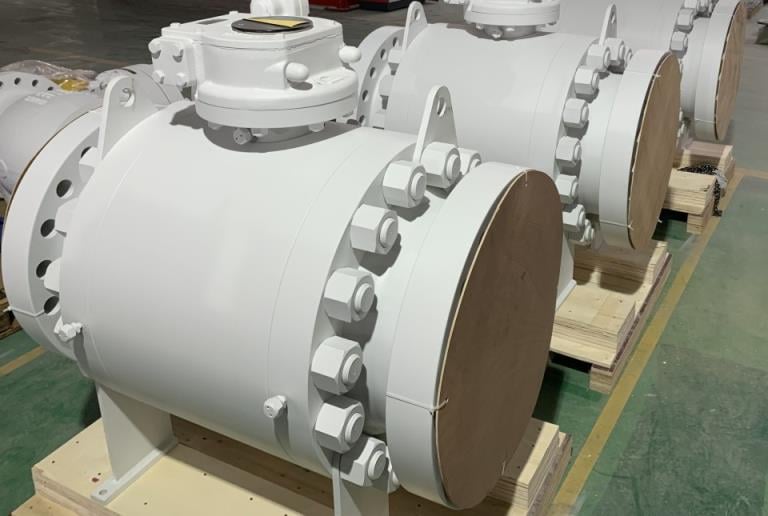

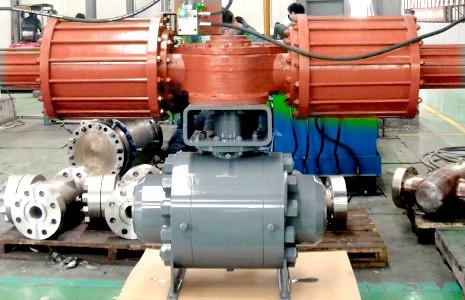

Metal Seat Trunnion Side Entry Ball Valve
The MMV Metal Seat Trunnion Side Entry Ball Valve offers superior performance compared to conventional soft-seated valves. With a wider operating temperature and pressure range, it delivers reliable and safe sealing under demanding conditions.
Designed for long service life, low pressure loss, and smooth operation, the MMV series is ideal for high-temperature, high-pressure, and highly corrosive applications — especially in industries such as coal chemical processing, polysilicon production, and sulfuric/nitric acid systems.
Size Range: 2”–24”
Pressure Class:
ANSI 150–2500
API 2000–15000
✅ Main Features and Options
Body Construction: Two or three-piece design with bolted joints for enhanced strength and easy maintenance
Material Versatility: Wide selection of materials for body and internal parts, including:
Carbon steel
Low alloy steels
Stainless steels
Duplex 22/25 Cr
Nickel alloys
Titanium
Surface Enhancements:
Overlays: Alloy 625 / 316L
Coatings: Tungsten Carbide, Chromium Carbide, ENP
Seating Design: Durable metal seat with optional single or double piston effect for reliable sealing
Safety Features:
Double block and bleed functionality
Overlay applied only to sealing surfaces for cost-effectiveness
Cladding in seat pocket areas
Fully internally clad for enhanced corrosion and wear resistance
Specialized Design:
Engineered for HIPPS (High Integrity Pressure Protection System) and ESD (Emergency Shutdown) systems
Available for extreme applications involving high or low temperatures (including cryogenic), as well as erosive, abrasive, and corrosive media
