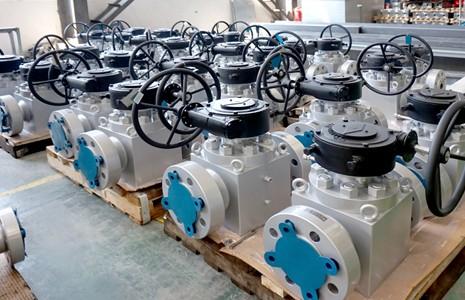

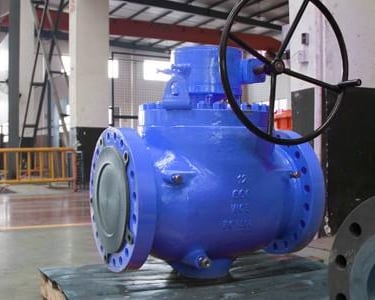

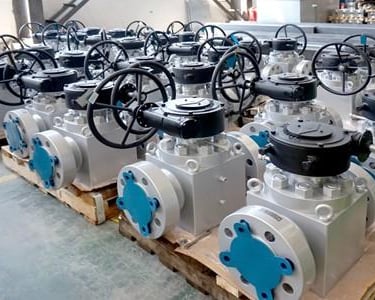

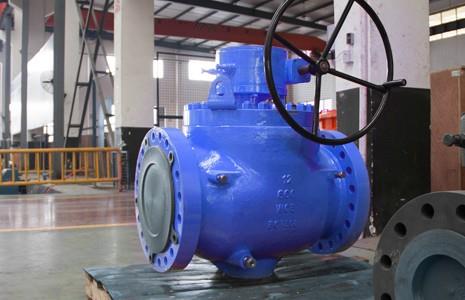

Top Entry Trunnion Mounted Ball Valve
TEV Top Entry Trunnion Mounted Ball Valves are designed to meet API 6D standards and feature a 1-piece top-entry design. These valves offer a wide selection of sealing materials, including PTFE, PEEK, Devlon, and Nylon, making them suitable for a temperature range of -46°C to 200°C. The TEV series can be customized with optional configurations such as Double Block and Bleed or Double Piston Type for added performance and safety.
Each TEV ball valve is equipped with a sealant injection system for both the stem and seats, allowing for external intervention to prevent any leakage. The top-entry design enables convenient in-line maintenance, ensuring long-lasting reliability. Additionally, the entire range of trunnion-mounted ball valves is fire-safe certified by ECM’s Register in compliance with API 607 standards.
Size Range: 2”–24”
Pressure Class:
ANSI 150–4500
API 2000–15000
Main Features and Options
Body Design: One-piece body construction with secure bolted joints
Material Options: Wide selection for both body and internals, including:
Carbon steel
Low alloy steels
Stainless steels
Duplex 22/25 Cr
Nickel alloys
Titanium
Overlays: Alloy 625 / 316L
Coatings: Tungsten Carbide, Chromium Carbide, ENP
Seat Options: Soft or metal seated
Sealing Performance: Single or double piston effect seat
Safety Features: Double block and bleed function
Surface Protection:
Overlay on sealing surfaces only
Cladding in seat pocket areas
Fully internally clad for enhanced corrosion resistance
Special Designs:
Tailored for HIPPS (High Integrity Pressure Protection System) and ESD (Emergency Shutdown) applications
Available for extreme conditions including high/low temperatures (cryogenic), erosive, abrasive, and corrosive environments
