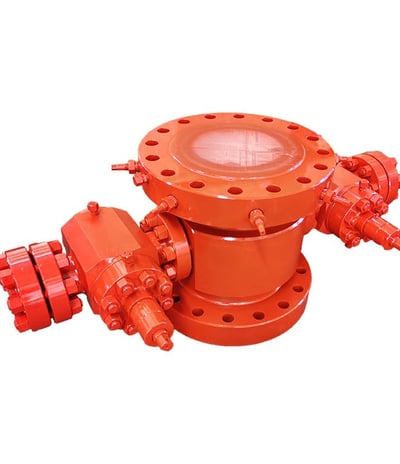

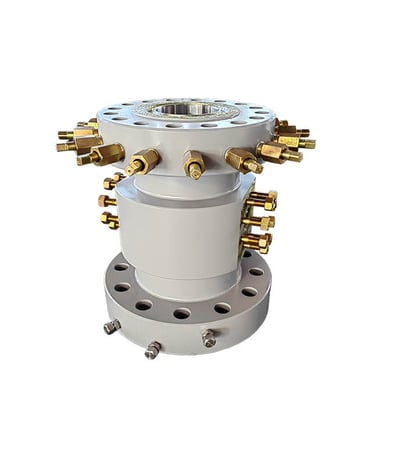

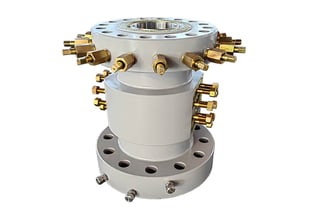

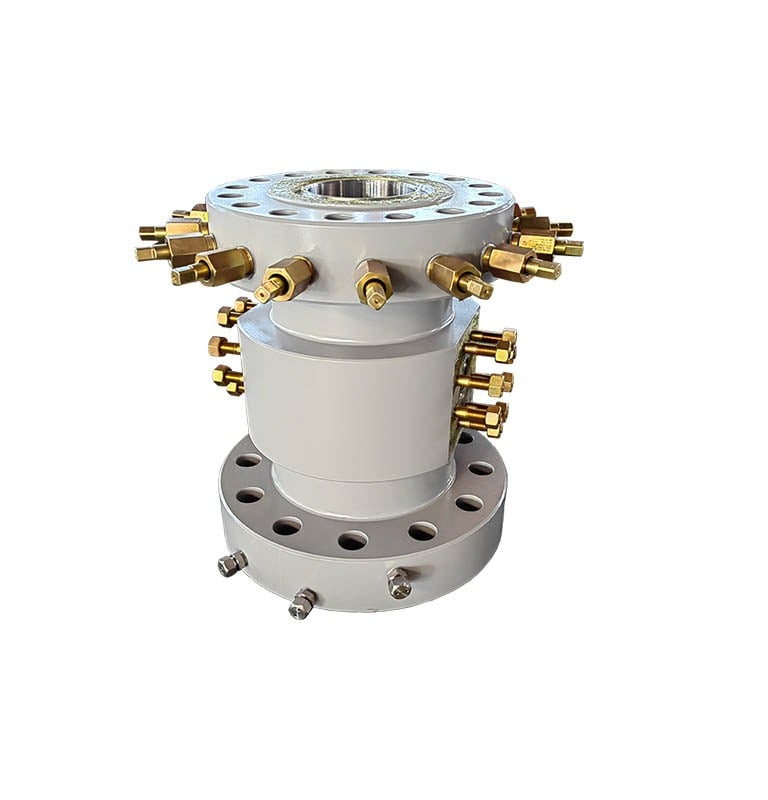

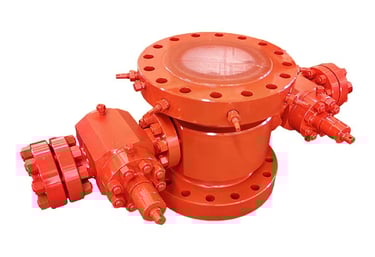

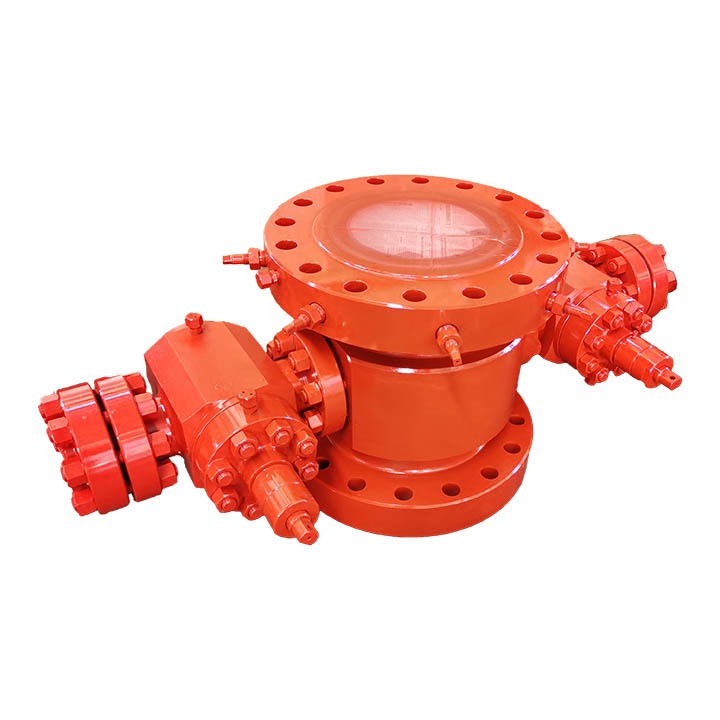

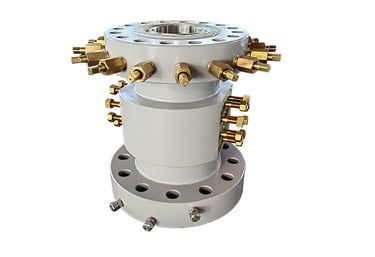

wellhead tubing head

What is a Tubing Head?

The tubing head is the uppermost spool in a wellhead assembly, providing essential support and sealing for the tubing string. It features a straight-type bowl and a 45-degree load shoulder that securely supports the tubing string through a tubing hanger. The tubing hanger is fixed in place using a full set of lock screws, ensuring stability and safety during operations.

The lower section of the tubing head houses a secondary seal, which isolates the production casing string and allows for testing of the wellhead seals. Depending on the setup, our tubing heads can be threaded or weld-on, allowing direct attachment to the production casing.

Key Features of Our Tubing Heads:

• Suspension of Production Tubing:
  Designed to suspend the production tubing securely within the wellbore.

• Seal Bore for Tubing Hanger:
  Provides a reliable seal bore to accommodate the tubing hanger, enhancing sealing efficiency.

• Lock Down Screws:
  Integrated lock down screws retain the tubing hanger and activate seals within the seal bore.

• Support for Blowout Preventers (BOPs):
  Offers support for BOPs during drilling, increasing operational safety.

• Fluid Return Outlets:
  Includes dedicated outlets for the return of drilling fluids.

• Blowout Preventer Testing:
  Equipped with features that enable BOP testing during the drilling process.

• Flange Design:
  Top and bottom flanges provide secure connections, with a seal area in the bottom flange to maintain a secondary seal between the casing annulus and the flanged connection.

• Pressure Testing Capability:
  The bottom flange includes a test port that allows for pressure testing of the secondary seal and flanged connection.

Versatile and Durable Tubing Heads:

Our tubing heads are suitable for a wide range of drilling applications, including both onshore and offshore wells. They are compatible with various wellhead equipment and can be seamlessly integrated into existing drilling rigs. This versatility makes them a cost-effective solution for oil and gas operators seeking reliable and durable equipment.

Why Choose Our Tubing Heads?

At Linkbridge Oil, we understand that durability and performance are crucial in demanding drilling environments. Our tubing heads are rigorously tested to ensure compliance with industry regulations and standards. By choosing our products, operators can have confidence in consistent and safe performance in the field.
